Wadia Di122


Paolosnz
 Share

Recommended Posts



Qualcuno l'ha provato? Non se ne parla molto..



TECHNICAL
Specification

Frequency Response
+/-0.5dB from 20Hz to 20,000Hz

Total Harmonic Distortion
0.005%

Variable Output Level
0 - 4.0Vrms Unbalanced
0- 8.0Vrms Balanced

Signal To Noise Ratio (A-Weighted)
105dB

Dynamic Range
98dB

Output Impedance
Less than 100 ohms (Unbalanced and Balanced)

Digital Input Signal Format
Coaxial and Optical Inputs - SPDIF (PCM)
USB Input - PCM, DSD

Digital Input Sample Rate
Coaxial and Optical: 44.1kHz to 192kHz, 24-Bit
USB: 44.1kHz to 384kHz, 32-Bit (PCM), DSD64, DSD128, DXD352.8kHz, DXD384kHz


Digital Inputs
Coaxial 1 and 2: 0.5V p-p/75 ohms
Optical 1 and 2: - 15dbm to -21dbm (TOS Link)
USB: USB Type B Connector

Trigger Input
5-15VDC, less than 1mA

Trigger Output
12VDC, 25mA maximum total

Power Requirements
100-240 Volts, 50/60Hz at 10 Watts
Standby: Less than 0.5 watt
Note: Only use the AC/DC Power Adapter supplied with the Wadia di122

Overall Dimensions
Width is 10 inches (25.4cm)
Height is 3-5/32 inches (8cm) including feet
Depth is 14 inches (35.6cm) including cables

Weight
7 pounds (3.2 kg)





di122 Back 1400x900(0).png

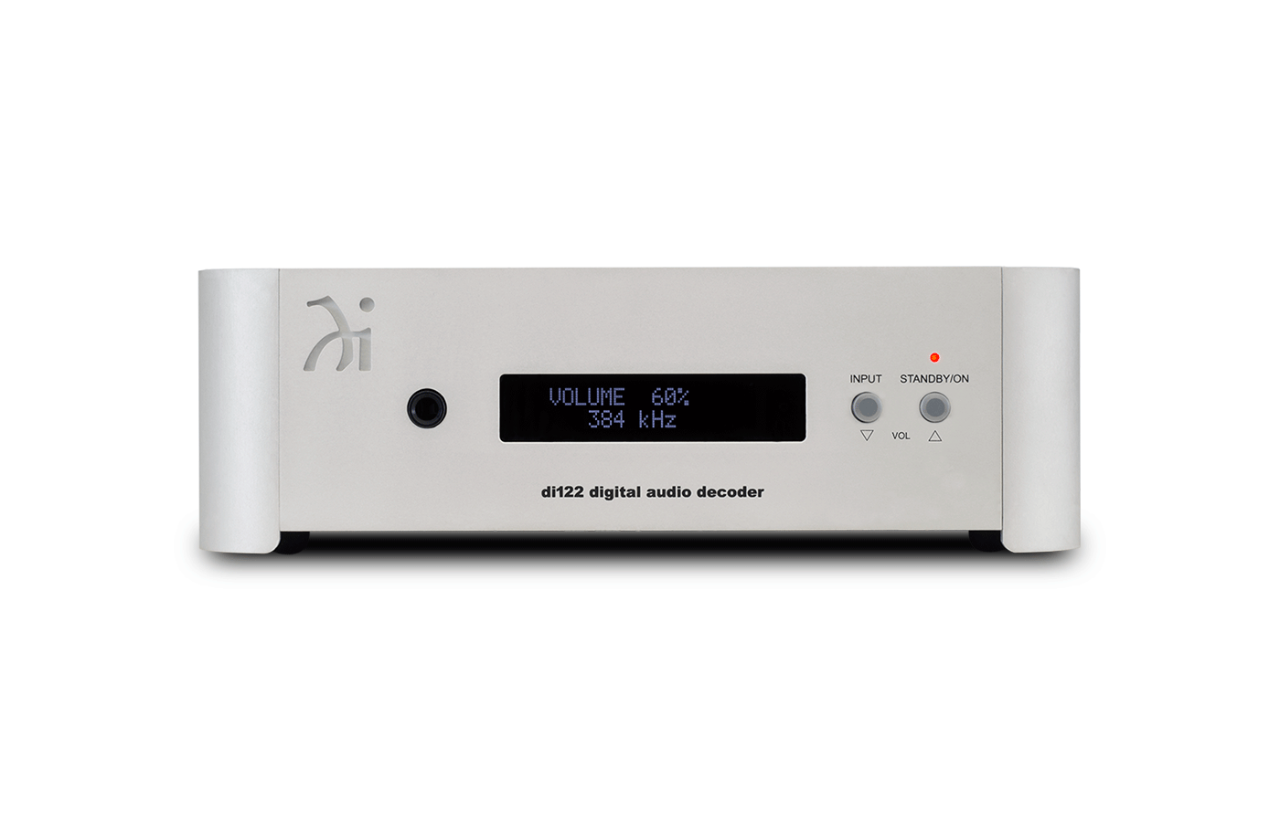

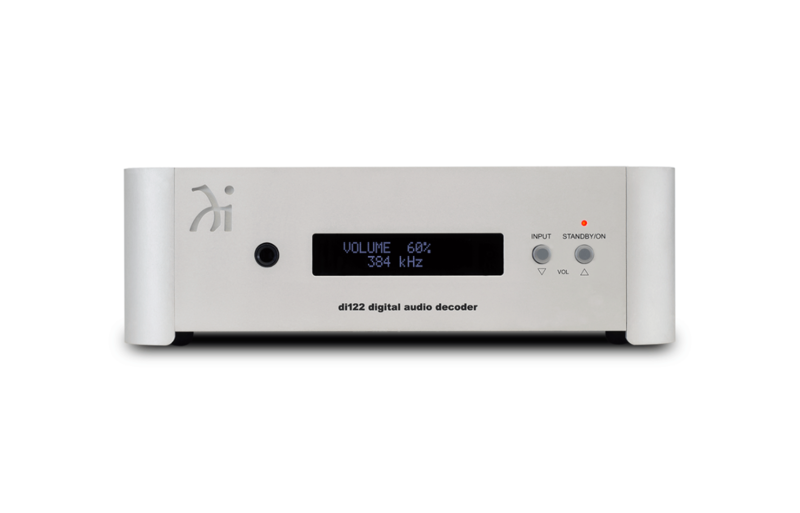

di122 Front 1400x900(1).png

Link to comment
Share on other sites

  • 2 months later...
geppogiappo

Ciao, piacerebbe avere info anche a me... È un DAC di qualche anno fa, ma ancora attuale, sono molto curioso. Se la gioca con l'Audiolab M-DAC+ per quanto mi riguarda. Uno dei due usato mi piacerebbe provarlo....
